BP Solar BP 340J > 40 Watt 17 Volt Solar Panel

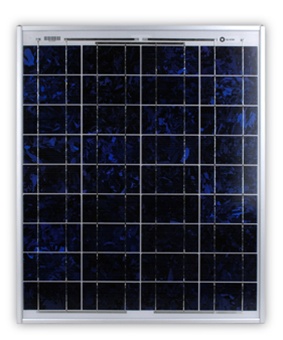

BP Solar 40 Watt 17 Volt Solar Panel - BP 340J

This product has been discontinued, an alternative would be:
Solartech SPM040P-BP > 40 Watt Solar Panel / Class 1 Division 2
Warranty: 25 Years

Stock Status:(Out of Stock)

Product Code: BP-SOLAR-SX-340J


Description


BP Solar 40 Watt 17.3 Volt Solar Panel

Polycrystalline
Manufacturer Part Number: BP340J

This module has been replaced by the BP440J.

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells.

Features

Configuration

J Universal frame with an accessible junction box for cable connection

Quality and Safety

  • Manufactured in ISO 9001-certified factories; conforms to European Community
  • Directives 89/33/EEC, 73/23/EEC, 93/68/EEC; certified to IEC 61215
  • Module power measurements calibrated to World Radiometric Reference through ESTI
  • Listed by Underwriter’s Laboratories for electrical and fire safety (Class C fire rating)
  • Approved by Factory Mutual Research in NEC Class 1, Division 2, Groups C & D hazardous locations.

Specifications

Maximum power (Pmax)40W
Voltage at Pmax (Vmpp)17.3V
Current at Pmax (Impp)2.3A
Short circuit current (Isc)2.5A
Open circuit voltage (Voc)21.8V
Solar Cells 36 polycrystalline cells in series
