BP Solar SX 305M > 5 Watt 16 Volt Solar Panel

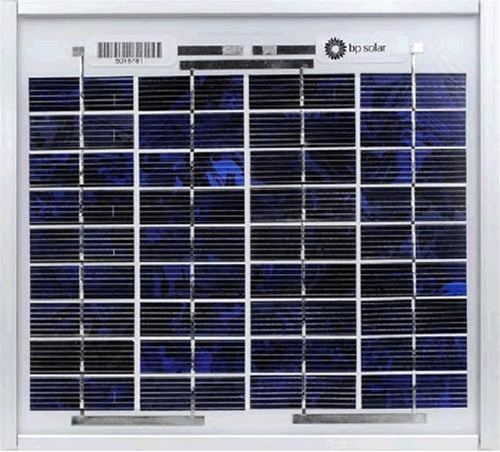

BP Solar 5 Watt 16 Volt Solar Panel - SX 305M

Warranty: 25 Years

Stock Status:(Out of Stock)

Availability: This item is no longer available.
Product Code: BP-SOLAR-SX-305M


Description


BP Solar 4.5 Watt 16.5 Volt Solar Panel

Polycrystalline
Manufacturer Part Number: SX305M

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells.

Features

Configuration

M Multimount frame with lo-pro J-Box and output cable.

Quality and Safety

  • Listed to UL 1703 Standard for safety by Intertek ETL (Class C fire rating)
  • Approved by Intertek ETL for use in NEC Class 1, Division 2, Groups A to D hazardous locations.

Specifications

Maximum power (Pmax)4.5W
Voltage at Pmax (Vmpp)16.5V
Current at Pmax (Impp)0.27A
Short circuit current (Isc)0.3A
Open circuit voltage (Voc)20.5V
Solar Cells 36 polycrystalline cells in series
