BP Solar SX 3140J > 140 Watt 17 Volt Solar Panel > Pallet of 20

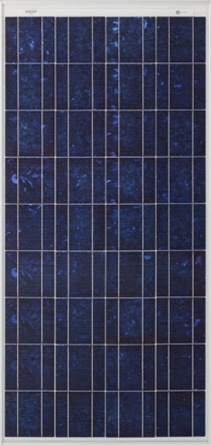

BP Solar 140 Watt 17 Volt Solar Panel - Pallet of 20 - SX 3140J

Warranty: 25 Years

Stock Status:(Out of Stock)

Availability: This item is no longer available.
Product Code: BP-SOLAR-SX-3140J-20


Description


BP Solar 140 Watt 17.5 Volt Solar Panel > Pallet of 20

Polycrystalline
Manufacturer Part Number: SX3140J

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells.

Features

Configuration

J Universal frame with an accessible junction box for cable connection

Quality and Safety

  • Module power measurements calibrated to World Radiometric Reference through ESTI (European Solar Test Installation at Ispra, Italy) Listed by Underwriter’s Laboratories for electrical an
  • d fire safety (Class C fire rating)
  • Approved by Factory Mutual Research in NEC Class 1, Division 2, Groups C & D hazardous locations (U)

Specifications

Maximum power (Pmax)140W
Voltage at Pmax (Vmpp)17.5V
Current at Pmax (Impp)8.0A
Short circuit current (Isc)8.2A
Open circuit voltage (Voc)22.0V
Solar Cells 36 polycrystalline cells in series
