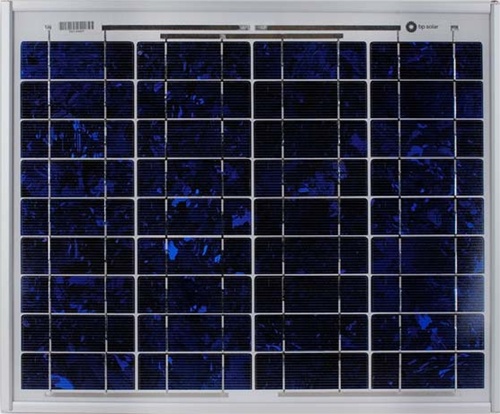

BP Solar SX 320J - 20 Watt 16 Volt Solar Panel

Warranty: 25 Years
Volts: 16.8 V

Stock Status:(Out of Stock)

Availability: This item is no longer available.
Product Code: BP-SOLAR-SX-320J


Description


BP Solar 20 Watt Solar Panel

Model BP SX 320J
Series
Manufacturer BP Solar

Mechanical

Type Poly
Dimensions 19.7" x 16.7" x 1.97"
Weight 6.6 lbs
Frame Silver Anodized Alimunum
Connector

Electrical

Watts (STC) 20 W
Watts (PTC)
Max Power Voltage (VMPP) 16.8 V
Max Power Current (IMPP) 1.19 A
Open Circuit Voltage (VOC) 21.0 V
Short Circuit Current (ISC) 1.29 A
Max System Voltage (UL) DC 50 V

Documentation

Data Sheet BP Solar SX320

Warranty

  • 2 Years Materials and Workmanship
  • 12 Years at 90% output

Detailed Description

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells.

Configuration

M Multimount frame with lo-pro J-Box and output cable.
J Clear universal frame and standard J-Box.

Quality and Safety

  • Listed to UL 1703 Standard for safety by Intertek ETL (Class C fire rating)
  • Approved by Intertek ETL for use in NEC Class 1, Division 2, Groups A to D hazardous locations.
