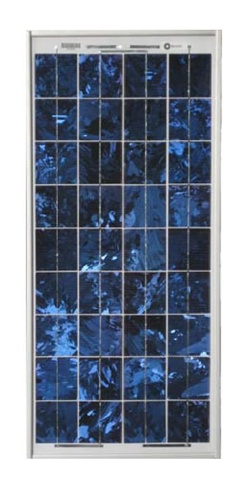

BP Solar 30 Watt Solar Panel
Ruggedized for dangerous environments, these panels carry ISO 9001 certification as well as IEC 61215 and 61730. They are certified use in Class 1, Division 2 Hazardous locations and conform with European Directive 2006/95/EC.
|
Model
|
BP SX 330J / 30J
|
|
Series
|
BP Solar
|
|
Manufacturer
|
Ameresco
|
Mechanical
|
Type
|
Poly
|
|
Dimensions
|
31.3" x 14.1" x 2.0"
|
|
Weight
|
8.6 lbs
|
|
Frame
|
Silver Anodized Alimunum
|
|
Connector
|
|
Electrical
|
Watts (STC)
|
30 W
|
|
Watts (PTC)
|
|
|
Max Power Voltage (VMPP)
|
16.8 V
|
|
Max Power Current (IMPP)
|
1.78 A
|
|
Open Circuit Voltage (VOC)
|
21.0 V
|
|
Short Circuit Current (ISC)
|
1.94 A
|
|
Max System Voltage (UL)
|
DC 50 V
|
Documentation
Warranty
- 2 Years Materials and Workmanship
- 12 Years at 90% output
Detailed Description
The BP 330 is an advanced 30W photovoltaic module that addresses the needs of rural electrification, from remote homes that do not have access to the utility grid, to remote industrial applications such as telemetry and instrumentation systems. This product offers improved efficiency through the use of advanced polycrystalline cells with SiN coating and a 12V nominal output, making it ideal for battery charging applications. It has proven performance at high temperatures and its robust design makes the product durable in the field and easy to install.
Features
Configuration
|
J
|
Universal frame with an accessible junction box for cable connection
|
Quality and Safety
- Manufactured in ISO 9001 certified factory
- Listed to UL1703 Standard for Safety by Intertek ETL (Class C fire rating)
- Approved by Factory Mutual Research in NEC Class 1, Division 2, Groups C and D hazardous
locations
