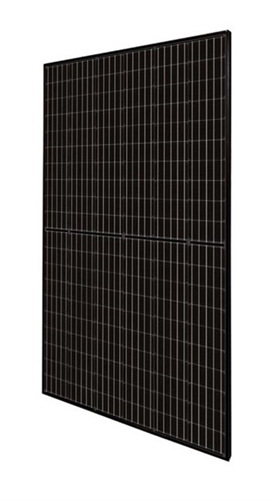

Canadian Solar > 300 Watt Mono-PERC Solar Panel - 35mm - BoB - All Black
Monocrystalline 120 1/2 Cell Solar Panel. Black Frame, White Backsheet.
|
Model
|
CS3K-300-MS-Black
Black Frame, BoB - Black Blacksheet
|
|
Series
|
KuPower Mono-PERC CS3K
|
|
Manufacturer
|
Canadian Solar
|
Mechanical
|
Type
|
Monocrystalline
|
|
Dimensions
|
65.9" x 39.1" x 1.38"
|
|
Weight
|
40.8 lbs
|
|
Frame
|
Black Anodized aluminum
|
|
Connector
|
Junction Box - IP68, 3 diodes
(w MC4 compatible leads)
|
Electrical
|
Watts (STC)
|
300 W
|
|
Max Power Voltage (VMPP)
|
32.5 V
|
|
Max Power Current (IMPP)
|
9.24 A
|
|
Open Circuit Voltage (VOC)
|
39.3 V
|
|
Short Circuit Current (ISC)
|
9.82 A
|
|
Max System Voltage (UL)
|
DC 1000 V
|
Warranty
- 10 Years Materials and Workmanship
- 25 Years linear power output
Detailed Information
With Canadian Solar’s industry leading mono-PERC cell technology
and the innovative LIC (Low Internal Current) module technology, they
are now able to offer our global customers high power mono modules.
The KuPower mono modules have the following unique
features:
Features
-
Low power loss in cell connection
-
Low NMOT: 41 ± 3 °C
Low temperature coefficient (Pmax): -0.37 % / °C
-
Better shading tolerance
-
High PTC rating of up to: 93.13 %
-
Heavy snow load up to 6000 Pa, wind load up to 4000 Pa*
