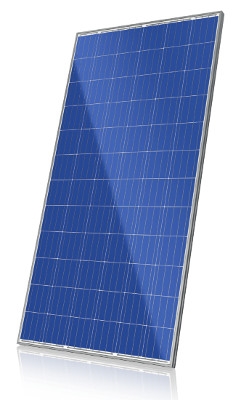

Canadian Solar 320 Watt Solar Panel - Pallet of 26 Modules
|
Model
|
CS6X-320P
|
|
Series
|
Quartech Max Power CS6X P
|
|
Manufacturer
|
Canadian Solar
|
Mechanical
|
Type
|
Poly
|
|
Dimensions
|
76.93" x 38.7" x 1.57"
|
|
Weight
|
48.5 lbs
|
|
Frame
|
Anodized Aluminum Alloy
|
|
Connector
|
MC4 or MC4 Comparable
|
Electrical
|
Watts (STC)
|
320 W
|
|
Watts (NOCT)
|
232 W
|
|
Max Power Voltage (VMPP)
|
36.8 V
|
|
Max Power Current (IMPP)
|
8.69 A
|
|
Open Circuit Voltage (VOC)
|
45.3 V
|
|
Short Circuit Current (ISC)
|
9.26 A
|
|
Max System Voltage
|
DC 1000 V
|
Documentation
Warranty
- 10 Years Materials and Workmanship
- 25 Years linear power output
Features
Canadian Solar‘s new Quartech modules have significantly raised the standard of module efficiency in the solar industry. They introduced innovative four busbar cell technology, which demonstrates higher power output and higher system reliability. Worldwide, our customers have embraced this next generation of modules for their excellent performance, superior reliability and enhanced value.
NEW TECHNOLOGY
- Reduces cell series resistance
- Reduces stress between cell interconnectors
- Improves module conversion efficiency
- Improves product reliability
Key Features
Higher energy yield, faster ROI
- Excellent module efficiency up to 15.85%
- Positive power tolerance up to 5W
- Outstanding performance at low irradiance
- Maximum energy yield at low NOCT
- Industry leading PTC rating of up to 91.25% on 60 cell modules and 90.16% on 72 cell modules
- Over 6% more power yield by PVsyst PV system simulation on 60 cell modules
Increased system reliability, secured investment
- Enhanced system performance stability with PID resistant technology
- Long term system reliability with IP67 Junction Box
- Robust frame to hold 5400 Pa load
- Salt Mist, ammonia and blowing sand resistance, apply to seaside, farm and desert environment
- Automotive industry quality management system (ISO16949) to our module MFG process to ensure product quality
Extra value to customers, more benefits
- A global bankable brand, top ranking amongst module manufacturers by industry analysts
- Anti-glare project evaluation (e.g., Airport installations)
- 25 Year linear performance warranty
- 25 year performance warranty insurance
- 10 Year product warranty on materials and workmanship
Detailed Information
Canadian Solar‘s new Quartech modules have significantly raised the standard of module efficiency in
the solar industry. They introduced innovative four busbar cell technology, which demonstrates higher power output
and higher system reliability.
- High module efficiency up to 16.16%
- High performance at low irradiance
above 96.0%
- Positive power tolerance: 0 - +5W
- Heavy snow load up to 5400Pa
- Wind load up to 2400Pa
- High energy yield at Low NOCT
|
|
|
 |
|
 |
|
