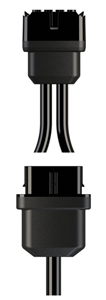

Enphase > 120 Drop QD Cable / PORTRAIT / 12 AWG / for 60-72 Cell Modules - IQ Commercial System
12 AWG / 277 VAC - For 60-72 Cell. Connector spacing is 1.7m (5.6ft). 1.3m (4.3ft) max spacing between microinverters. ·120 4-pin male connectors plug directly into the IQ8 Commercial Microinverters. · 19 additional center taps spaced every 6 connectors. Centre tap connectors spaced at half-spacing to maintain connector spacing.
Model
|
QD-12-13-120
|
Series
|
Q Cable
|
Manufacturer
|
Enphase
|
The Enphase QD Cable and accessories are integral parts of the IQ8 Commercial Microinverter
based PV system for grid-tied, three-phase 208 V PV applications.
The QD Cable works with the Enphase IQ8 Commercial Microinverter and provides self-phase balancing and neutral sensing for phase loss protection.
Specifications
Drops
|
1
|
Voltage
|
277 VAC
|
Layout
|
Landscape
|
Features
Reliable
- Neutral sensing for phase loss protection
- Locking-type connectors
- Rated for outdoor, wet environments, sunlight resistance, and oil resistance
Easy
- Self-phase balancing
- Lightweight and simple for fast installation
- Modularly expandable
- Reduction in balance-of-system costs and installation time
- Phase ID marked on QD Cable connectors for easy identification (C1: L1-L2, C2: L2-L3, and C3: L3-L1 sequentially)
- Separate center feeding connector in all AC branch circuit cabling SKUs for maintaining <1% voltage
rise with easy plug-and-play installations
Field Wireable QD Connectors
- Easily connect QD Cables on the roof without complex wiring
- Available as male and female connector types
- UL Listed
|
|
