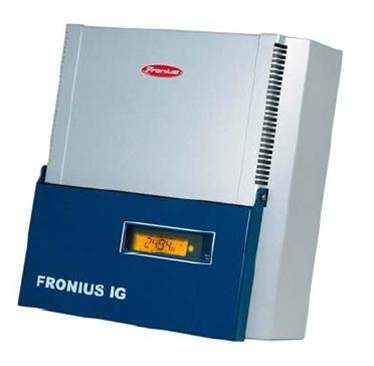

Fronius 2500 Watt 208 VAC Grid-Tie Inverter
Fronius inverters offer high efficiencies and a wide voltage range for improved flexibility. A LCD display comes standard, plus integrated DC / AC disconnects reduce installation time and complexity.
Specifications
| Model |
IG 2500-LV - 4,200,110,800 |
| Series |
IG |
| Manufacturer |
Fronius |
Mechanical
| Type |
Grid Tie - Central |
| Operating Temperature Range |
-20° C - 50° C |
| Enclosure |
NEMA 3R |
| Cooling |
Controlled Forced Ventilation |
| Dimensions (W x H x D) |
18.5" x 16.5" x 8.8" |
| Weight |
26 lbs |
| Shipping Method |
Ground |
Input (DC)
| Recommended PV Power (STC) |
1800 - 3000 W |
| Max Voltage |
500 V |
| Nominal Voltage |
|
| Peak Power Tracking Voltage |
|
| Operating Range |
150 V - 450 V |
| Min/Max Start Voltage |
|
| Max Current |
16.9A |
Output (AC)
| Maximum Output Power |
2350 W |
| Nominal Voltage |
208 V |
| Voltage Range |
183 V - 229 V |
| Frequency |
60.0 Hz |
| Max Current |
11.25 A |
Documentation
Features
Light Weight
At 26 lbs, the Fronius IG inverters are the lightest grid-connected inverters making them easy-to-install.
Flexible
The wide voltage range of 150-500 V allows you to use different types of modules and system configuration possibilities.
Lower Cost
Integrated DC / AC disconnects reduce installation time and complexity.
LCD Display
User-friendly and comes standard with every Fronius IG; tracks more than 20 critical system performance parameters. Plug-and-Play Expansion slots in the inverter allow you to easily upgrade the inverter with data communication options.
Detailed Description
The Fronius IG inverters offer high efficiency, precision MPP-tracking, and intelligent thermal management, all of which deliver high quality energy output from grid-tied photovoltaic systems. Their wide input voltage range (150-450 volts) enable the use of modules in any power and voltage range. Their light weight and innovative mounting hardware make them very easy to install. Built-in DC and AC disconnects eliminate the need for external breakers in some cases, decreasing total system costs.
