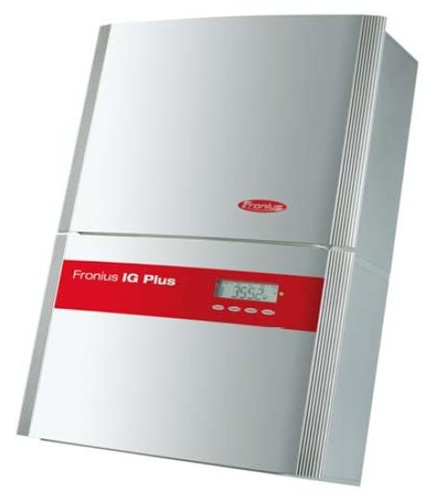

Fronius IG Plus 3800 Watt Grid-Tie Inverter
208 / 240 / 277 Volt
96.2% Efficiency
Manufacturer Part Number: 4,210,102,800
An outstanding addition to the family: The next
generation Fronius IG Plus inverter builds on a
successful model with multiple enhancements,
including maximum power harvest, a built-in six
circuit string combiner, integrated, lockable DC
Disconnect, signifi cantly improved effi ciency, and
unbeatable reliability. New, larger power stages
expand the proven Fronius IG family from 2 to
12 kW in a single inverter.
Features
Grounding selectable on site.
Decide on site what type of grounding is required as the Fronius IG Plus is field programmable for either positive or negative module grounding.
Designed for indoor and outdoor installations.
All Fronius IG Plus inverters have a robust, well designed aluminum housing. UV resistance and corrosion protection enable them to be used either indoors or outdoors. Fronius is proud to be one of the only inverters tested and approved to operate at 122° F.
Integrated DC disconnect.
No external DC disconnect installation or cabling is necessary. The Fronius IG Plus comes complete with an approved, built-in, lockable and load breakable DC Disconnect.
The new power plug system.
The connection area and power stages are installed separately from each other. Very easy and extremely safe: The connection area is attached to the wall as normal. Then the power module is simply plugged in. The power plug connects both parts into one secure unit. If service is required, the connector remains on the wall maintaining all settings and configurations.
Field Programmable AC output voltage.
The Fronius IG Plus inverter line from 3.0 to 11.4 kW is field programmable to 208, 240 or 277 volts (Fronius IG Plus 12.0 kW only availabale in 277 volts), eliminating the need to install different inverter models to accommodate three-phase installations.
Specifications
|
Input Data |
3.0-1 UNI |
3.8-1 UNI |
5.0-1 UNI
|
|---|
|
Recommended PV Power (Wp) |
2500-3450 |
3200-4400 |
4250-5750
|
|
MPPT Voltage Range |
230-500 V
|
|
DC Startup Voltage |
245 Volts
|
Max input voltage (at 1000 W/m2
14° F (-10° C) in open circuit operation) |
600V
|
|
Nominal input current |
8.3 A |
10.5 A |
13.8 A
|
|
Max usable input current |
14.0 A |
17.8 A |
23.4 A
|
|
Admissible conductor size (DC) |
No. 14 - 6 AWG
|
|
Number of DC input terminals |
6
|
|
Max current per DC input terminal |
20 A; Bus bar available for higher input currents
|
|
Output Data
|
|---|
|
Nominal output power |
3000 W |
3800 W |
5000 W
|
Max continuous output power
104° F (40° C) 208 V / 240 V / 277 V |
3000 W |
3800 W |
5000 W
|
|
Nominal AC output voltage |
208 V / 240 V / 277 V
|
|
Operating AC Voltage Range |
208 V | 183 - 229 V (-12 / +10 %) |
|
240 V | 211 - 264 V (-12 / +10 %) |
|
277 V | 244 - 305 V (-12 / +10 %)
|
|
Max Continuous output current |
208 |
14.4 A |
18.3 A |
24.0 A |
| 240 |
12.5 A |
15.8 A |
20.8 A |
| 277 |
10.8 A |
13.7 A |
18.1 A |
|
Admissible conductor size (AC) |
No. 14-4 AWG
|
|
Max continuous utility back feed current |
0 A
|
|
Nominal Output Frequency |
60 Hz
|
|
Operating frequency range |
59.3 - 60.5 Hz
|
|
Total harmonic distortion |
< 3%
|
|
Power factor |
1
|
|
General Data
|
|---|
|
Max Efficiency |
96.2%
|
|
CEC Efficiency |
208 |
95.0 |
95.0 |
95.5
|
|
240 |
95.5 |
95.5 |
95.5
|
|
277 |
95.5 |
95.5 |
96.0
|
|
Consumption in standby (night) |
< 1 W
|
|
Consumption during operation |
8 W |
8 W |
15 W
|
|
Cooling |
Controlled forced ventilation, variable fan speed
|
|
Enclosure Type |
NEMA 3R
|
|
Unit Dimensions (W x H x D) |
17.1" x 24.8" x 9.6" |
17.1" x 36.4" x 9.6"
|
|
Power Stack Weight |
31 lbs (14 kg) |
57 lbs (26 kg)
|
|
Wiring compartment weight |
24 lbs (11 kg) |
26 lbs (12 kg)
|
|
Admissible ambient operating temerature |
-4 ... 122° F (-20 ... +50° C)
|
|
Compliance |
UL 1741-2005, IEEE 1547-2003, IEEE 1547.1, ANSI/IEEE C62.41, FCC Part 15 A& B, NEC Article 690, C22. 2 No. 107.1-01 (Sept. 2001)
|
Detailed Description
Three efficiency peaks.
Greater power harvest for every system size: The unique automatic transformer switching function of the Fronius IG Plus makes enables not one, but three equal efficiency peaks. The result: Consistantly high efficiency over a wide input voltage range.
In comparison: The efficiency of inverters without transformer switching declines steadily with an increasing input voltage. Devices without a transformer only have one efficiency peak.
With a 96.2 % maximum efficiency, the Fronius IG Plus series scores the highest grade among HF devices.
MIX™ Concept.
Get the maximum power harvest out of partial load ranges, e.g. on cloudy days, through a clever combination of multiple power stages in each inverter. The power stages in Fronius inverters divide up the work depending on operating hours and only operate as many power stages as required to efficiently process available power from the PV array.
Module Manager
The Module Manager keeps all Fronius IG inverters at the maximum power point (MPP) with fast and exact MPP tracking, ensuring that you get the most power out or each ray of sunlight. This is especially important for amorphous modules whose MPP can be more challenging to track.
Smart Ventilation Design.
Disruptive ambient factors such as biological infestation, dust, moisture or coastal salt air stay outside the new Fronius IG Plus Inverters away from the circuitry. How: Cool air is drawn in through a filter screen on the back of the invertar and routed through a closed channel over the heat sink. This prevents contact between outside air and the circuit boards while cooling the inverter components ensuring the inverter operates consistendly. All circuit boards are also dipped in Conformal coating to prpovide an added measure of protection.
