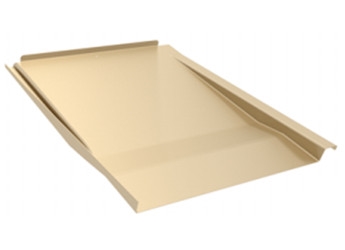

IronRidge > Knockout Tile, Tan Flashing, Flat Profile - 1 Unit

Product Description

IronRidge Flat Profile Knockout Tile is a tile replacement mount that installs fast and works on roofs with flat tiles. Its simple base allows you to put it anywhere within the flashing pad on the rafter, and just punch a small hole in the flashing where it is needed—with no cutting or grinding. L-Foot included. Knockout Tile is fully tested to our rigorous standards, certified as a system with XR rail and covered by our 25-year warranty.

Features

• Universal base (KOB-1L01-B1 - sold separately) - strong with compact footprint
• Only 2 parts - the base and the flashing profile
• Base Kit includes baseplate, lag bolt, black L-foot and hardware
• Profiles available for Flat tile, S tile, or W shaped tiles
• Natural tan color
• 2 X faster installation than traditional tile roof mounts
• Near central loading on the base plate means higher pull out and lateral strength for high wind/snow regions
• 40% higher loading capacity and half as many roof penetrations
• Completely waterproof
• Listed to UL 2703 for bonding and mechanical loading, and passed both the UL 441
• Section 27 rain test and TAS 100(A)-95 wind-driven rain test
• 25 Year Warranty when used with XR rails
