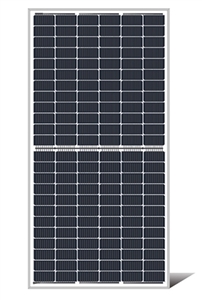

LONGi > 445 Watt Mono Solar Panel
144 Half-Cell Monocrystalline solar panel. 35mm clear frame, White backsheet.
|
Model
|
LR4-72HPH-445M
|
|
Series
|
LR4-72HPH 425 - 455M
Hi-MO 4m |
|
Manufacturer
|
LONGi
|
Mechanical
|
Type
|
Monocrystalline
|
|
Dimensions
|
82.44" x 40.71" x 1.38"
|
|
Weight
|
51.8 lbs
|
|
Frame
|
Anodized aluminum alloy frame
|
|
Connector
|
Junction Box with Cable & MC4 Compatible Connectors
|
Electrical
|
Watts (STC)
|
445 W
|
|
Max Power Voltage (VMPP)
|
41.3 V
|
|
Max Power Current (IMPP)
|
10.71 A
|
|
Open Circuit Voltage (VOC)
|
49.3 V
|
|
Short Circuit Current (ISC)
|
11.53 A
|
|
Max System Voltage (UL)
|
1000 VDC
|
Warranty
- 12 year Warranty for Material and Processing
- 25 years Warranty for Extra Linear Power Output
Product Description
LONGi 440w Mono PERC w 144 Half-cut Cells (72 cell equivalent). Silver 35mm frame, white backsheet and MC4 compatible connectors w/ 55" (1400mm) cable.
The LONGi HPH Series combines High Efficiency, Low LID Mono PERC cells with Half-cut Muti Busbar Technology to improve performance and boost production. This module series has a max system voltage of 1500V and is Fire Rated as Class C (per UL790). 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading.
- Positive power tolerance (0~ +5W) guaranteed
- High module conversion efficiency (up to 20.5%)
- Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
- Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
- Reduced resistive loss with lower operating current
- Higher energy yield with lower operating temperature
- Reduced hot spot risk with optimized electrical design and lower operating current
