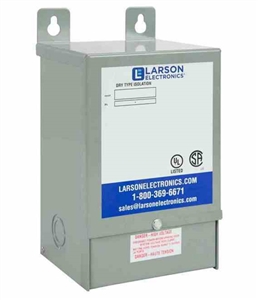

Larson Electronics > 5 kVA Isolation Transformer - 480V Primary - 120V Secondary - NEMA 3R - Single Phase - Fully Potted / Encapsulated - Copper
The
MT-DOE16-FP-1P-480V-5KVA-120V-N3R-CU 480V Single Phase Energy Efficient Fully Potted Isolation Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-DOE16-FP-1P-480V-5KVA-120V-N3R provides increased reliablity and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses.
|
Part #
|
MT-DOE16-FP-1P-480V-5KVA-120V-N3R-CU
|
|
Model Description
|
5 kVA Isolation Transformer - 480V Primary - 120V Secondary -
NEMA 3R - Single Phase - Fully Potted / Encapsulated - Copper
|
|
Series
|
Isolation Transformer
|
|
Manufacturer
|
Larson Electronics LLC
|
|
MT-DOE16-FP-1P-480V-5KVA-120V-N3R-CU Fully Potted Isolation Transformer
|
|
Phase:
|
Single Phase
|
|
Frequency:
|
50/60 Hz
|
|
kVA:
|
5
|
|
Primary Voltage:
|
480 V
|
|
Taps:
|
TBD
|
|
Secondary Voltage:
|
120 V
|
|
Winding Material:
|
Copper
|
|
Insulation:
|
220°C / 428°F
|
|
Temperature Rise:
|
150°C / 302°F
|
|
Impedance (Std):
|
-
|
|
Seismic:
|
Yes
|
|
Sound Level:
|
Meets NEMA ST-20 Standards
|
|
Primary Termination:
|
-
|
|
Secondary Termination:
|
-
|
|
Enclosure Material:
|
NEMA Type 3R Heavy Duty
|
|
Finish:
|
ANSI 61 Grey Finish
|
|
Mounting:
|
Wall Mount
|
|
Dimensions:
|
14.38"H x 10.31"W x 7.13"D
|
|
Weight:
|
75 lbs
|
|
Shipping Dimensions:
|
48" x 48" x 20" (Freight Pallet)
|
|
Shipping Weight:
|
130 lbs.
|
|
Ratings:
|
NRTL Listed for United States and Canada, ANN Cooling, IP14 Rated, Fully Potted / Encapsulated Isolation Transformer
|
Features
Transformer Features: With a transformer rating of 5 kVA, the MT-DOE16-FP-1P-480V-5KVA-120V-N3R isolation transformer is a single phase unit with a primary voltage of 480 V. It also provides a secondary voltage of 120 V. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
This fully potted unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard NEMA Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and it can be wall mounted. The unit also features 220°C insulation with a 150°C temperature rise and is rated IP14.
Benefits: The MT-DOE16-FP-1P-480V-5KVA-120V-N3R fully potted isolation transformer offers many benefits to the consumer. Precision cut copper transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations.

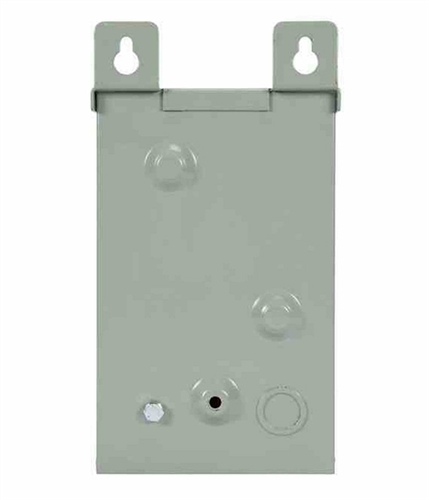

This encapsulated isolation transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated wall brackets make installation fast and easy and the offset outward facing installation holes allow for easy power tool access.
Safety: The MT-DOE16-FP-1P-480V-5KVA-120V-N3R is an isolation transformer which means that it provides operators with an increased level of protection against electric shock. An isolation transformer can also suppress electrical noise in sensitive devices and transfer power between two circuits which must not be connected. The MT-DOE16-FP-1P-480V-5KVA-120V-N3R achieves these safety features by separating or "isolating" the powered device from the power source and insulation between the primary and secondary power sources.
Applications: General purposes.
