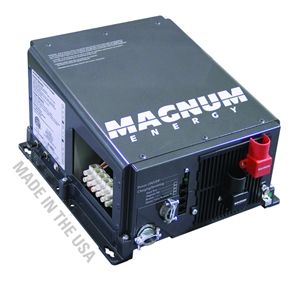

Magnum Energy 2500 Watt 12 Volt Off-Grid Inverter
Modified Sine Wave
Manufacturer Part Number: ME2512
The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.
Features
- Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter / chargers. It uses less energy from a generator than a standard current than standard chargers.
- Choices: The ME Series comes in three power models and optional built-in branch rated AC output breakers, allowing you to choose the model that is right for you.
- Versatile mounting: Mount the ME Series on a shelf, bulkhead, or even upside down.
- Lightweight: The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
- Multiple ports: The ME Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.
- Accessible design: The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter more accessible when it needs to be.
- Convenient switches: The ME Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.
- Expanded transfer relay: 60 Amp transfer service is available on all models, and can be wired in three ways, including single in / single out, single in / dual out, or dual in / dual out.
- Buy with ease: The ME Series is backed by a three-year (36-month) limited warranty
Specifications
| Waveform |
Modified Sine Wave |
| Input Battery Voltage Rance |
9 - 16 VDC |
| Nominal AC Output Voltage |
120 VAC |
| Output Frequency and Accuracy |
60 Hz +/- 0.1% |
| Total Harmonic Distortion (THD) |
< 5% |
| Continuous Power Output at 45° C |
2500 VA |
| Maximum Continuous input current |
333 ADC |
| Peak Inverter Efficiency |
91% |
| Dimensions (L x W x H) |
13.75" x 12.65" x 8.0" (34.9 x 32.1 x 20.3 cm) |
| Weight |
41 lbs |
Detailed Description
Safe and reliable:
The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable.
Easy-to-install:
Install the ME Series in four easy steps: simply connect the inverter’s output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter’s easy-to-reach terminal block, connect the batteries, and switch on the power.
|
|
|
 |
|
 |
|
|
|
