NUE > NUEPower 12 Volt 400 Amp Hour 8D Home Battery
The

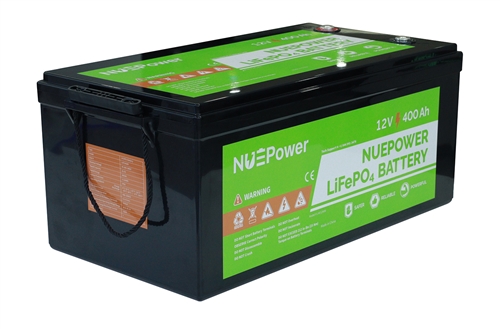

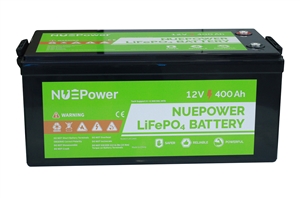

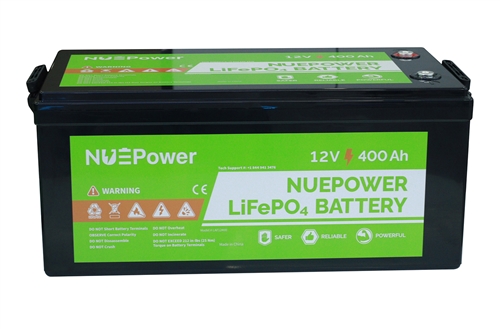

NUEPower NP-12400-PRY-BT-ABS is a professional-grade lithium iron phosphate (LiFeP04) battery in rugged, waterproof ABS plastic case.
This NUEPower battery features 5120Wh of stored energy in a durable and easy to transport case. Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities.
|
Model
|
NP-12400-PRY-BT-ABS
|
|
Series
|
NUEPower
|
|
Manufacturer
|
NUE | New Use Energy
|
Mechanical
|
Type
|
Lithium Iron Phosphate (LiFeP04)
|
|
Storage Capacity
|
5.12 kWh
|
Estimated Cycle Life based on an 80% Depth of Discharge
(subject to other variables including temperature and load)
|
6,000
|
|
DC Nominal Voltage
|
12.8V
|
|
Recommended Voltage Range
|
12-14.6V
|
|
Max Continuous Charge Current
|
200A
|
|
Nominal and Minimum Capacity
|
400Ah
|
|
Max Continuous Discharge Current
|
200Ah
|
|
Peak Discharge Current
|
200A
|
|
Maximum in Parallel (Series)
|
16 (4)
|
|
Operating Temperature
|
-4° to 140°F (-20° to 60°C)
|
|
Charge Temperature
|
32° to 131°F (0° to 55°C)
|
|
(Bulk) Fully Charged Voltage
|
14.4V
|
|
Cell Balancing (Float) Voltage
|
13.6V
|
|
Dimensions
|
21" x 11" x 9"
52 x 27 x 22 cm
|
|
Weight
|
84 lbs (38 kg)
|
|
Shipping Method
|
Freight
|
|
Warranty
|
5 Year Limited Warranty
|
|
Certifications
|
UN 38.3, UL (Cell), and CE (Cell) Certified.
|
Product Details
5120Wh of 12V professional-grade lithium iron phosphate (LiFePO4) battery in a 8D rugged, waterproof ABS plastic case. Replace older AGM/FLA 12V batteries wired in parallel with 1 or 2 48V 100Ah Lithium-Iron Phosphate batteries. Simplify your system. Installations can be as large as 20 batteries wired in parallel for 8,000 Ah of 12V energy storage. This battery will fit into pre-existing racks/setups and pairs with most 12V Off-Grid inverters.
Features: Why Choose NUEPower 8D Power Batteries?
- Easy-to-use Bluetooth App
- Remove cables vs. wiring smaller 12V batteries in parallel
- Optional Cell Heating Elements
- Cheaper to replace batteries than a whole system
Applications
- Lead-Acid replacement for 12V pre-inspected and certified inverter+battery systems
- Commercial and remote power installations
- Fully off-grid solar kits
- UPS backup for extended and repeated outages
- Trailer/RV off-grid DIY systems that are not connected to main shore power
Advantages of Lithium-Ion Over Lead-Acid
- Tolerates prolonged deep discharges
- 60% of the weight for the same Whr capacity
- 2x the energy with a higher discharge and recharge rate
- 20x longer cycle life
- Up to five times longer calendar life in float applications
- Superior tolerance to high temperatures
- Lower lifetime operations cost
|
|
|
 |
|
 |
|
|
|
