NUE > NUEPower 24 Volt 200 Amp Hour 8D Home Battery
The

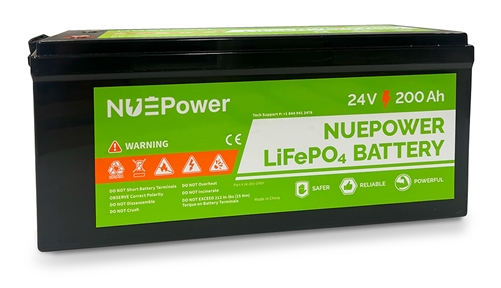

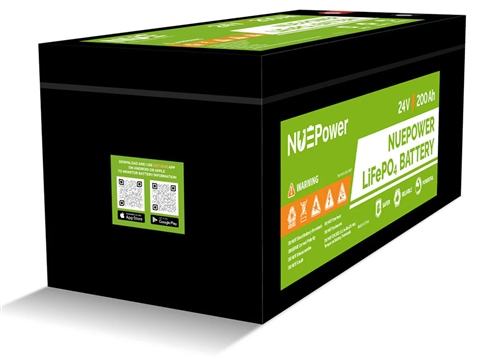

NUEPower NP-24200-PRY-BT-ABS is a professional-grade lithium iron phosphate (LiFeP04) battery in rugged, waterproof ABS plastic case.
This NUEPower battery features 5120Wh of stored energy in a durable and easy to transport case. Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities.
|
Model
|
NP-24200-PRY-BT-ABS
|
|
Series
|
NUEPower
|
|
Manufacturer
|
NUE | New Use Energy
|
Mechanical
|
Type
|
Lithium Iron Phosphate (LiFeP04)
|
|
Storage Capacity
|
5.12 kWh
|
Estimated Cycle Life based on an 80% Depth of Discharge
(subject to other variables including temperature and load)
|
6,000
|
|
DC Nominal Voltage
|
25.6V
|
|
Recommended Voltage Range
|
24-30V
|
|
Max Continuous Charge Current
|
150A
|
|
Nominal and Minimum Capacity
|
200Ah
|
|
Max Continuous Discharge Current
|
150A
|
|
Peak Discharge Current
|
160A 3-7S
|
|
Maximum in Parallel
|
20
|
|
Operating Temperature
|
-4° to 140°F (-20° to 60°C)
|
|
Charge Temperature
|
32° to 131°F (0° to 55°C)
|
|
Dimensions
|
21" x 11" x 9"
52 x 27 x 22 cm
|
|
Weight
|
84 lbs (38 kg)
|
|
Shipping Method
|
Freight
|
|
Warranty
|
5 Year Limited Warranty
|
|
Certifications
|
UN 38.3, UL (Cell), and CE (Cell) Certified.
|
Product Details
5120Wh of 24V professional-grade lithium iron phosphate (LiFePO4) battery in a 8D rugged, waterproof ABS plastic case. Simplify your system. Installations can be as large as 20 batteries wired in parallel for 4,000 Ah of 24V energy storage. This battery will fit into pre-existing racks/setups and pairs with most 24V Off-Grid inverters.
Features: Why Choose NUEPower 8D Power Batteries?
- Easy-to-use Bluetooth App
- Remove cables vs. wiring smaller 12V batteries in parallel
- Optional Cell Heating Elements
- Cheaper to replace batteries than a whole system
Applications
- Lead-Acid replacement for 24V pre-inspected and certified inverter+battery systems
- Commercial and remote power installations
- Fully off-grid solar kits
- UPS backup for extended and repeated outages
- Trailer/RV off-grid DIY systems that are not connected to main shore power
Advantages of Lithium-Ion Over Lead-Acid
- Tolerates prolonged deep discharges
- 60% of the weight for the same Whr capacity
- 2x the energy with a higher discharge and recharge rate
- 20x longer cycle life
- Up to five times longer calendar life in float applications
- Superior tolerance to high temperatures
- Lower lifetime operations cost
|
|
|
 |
|
 |
|
|
|
