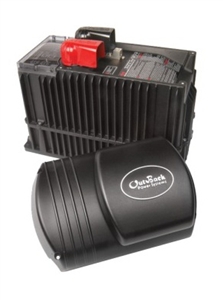

OutBack 2500 Watt Sealed Grid-Tie Inverter
Voltage: 120 VAC / 60 HZ
DC Input Voltage Range: 20-33 VDC
Manufacturer Part Number: GTFX2524
The GTFX models incorporate a unique die-cast aluminum, sealed housing, which keeps the electronic components cool while protecting them from the major causes of inverter failure - corrosion, dust, insect and animal damage - even temporary submersion and pressure washing. All of the GTFX models also now include standard an external cooling fan to improve operation in high ambient temperature conditions and increased efficiency at high power.
Features:
- ZERO watts of AC power draw at night- automatic "silent" sell mode built in.
- Daily energy production on par with battery-less grid-tie inverter systems.
- Modular configuration allows easy system expansion and flexible design with up to 10 inverters interconnected.
- Integrated communication between the inverters and the charge controllers ensure proper operation.
- Automatically optimizes the conversion efficiency by matching the number of inverters to the amount of power being sold or used.
Specifications:
|
Sealed Models |
Vented Models |
|
GTFX2524 |
GTFX3048 |
GVFX3524 |
GVFX3648 |
| Nominal DC Input Voltage |
24 VDC |
48 VDC |
24 VDC |
48 VDC |
| Continuous Power Rating at 25° C |
2500 VA |
3000 VA |
3500 VA |
3600 VA |
| AC Voltage/Frequency |
120 VAC 60 Hz |
120 VAC 60 Hz |
120 VAC 60 Hz |
120 VAC 60 Hz |
| Continuous AC RMS Output at 25° C |
20.8 amps AC |
25.0 amps AC |
29.2 amps AC |
30.0 amps AC |
| Full Idle Power |
˜ 20 Watts |
˜ 20 Watts |
˜ 20 Watts |
˜ 20 Watts |
| Search |
˜ 6 Watts |
˜ 6 Watts |
˜ 6 Watts |
˜ 6 Watts |
| Typical Efficiency |
92% |
93% |
92% |
93% |
| Inverting Total Harmonic Distortion |
2% |
2% |
2% |
2% |
| Selling |
5% |
5% |
5% |
5% |
| Output Voltage Regulation |
‹ 2% |
‹ 2% |
‹ 2% |
‹ 2% |
| Peak Maximum Output Current |
70 amps AC |
70 amps AC |
70 amps AC |
70 amps AC |
| RMS |
50 amps AC |
50 amps AC |
50 amps AC |
50 amps AC |
| Surge AC Overload Capability |
6000 VA |
6000 VA |
6000 VA |
6000 VA |
| 5 Second |
4800 VA |
4800 VA |
5000 VA |
5000 VA |
| 30 Minutes |
3200 VA |
3200 VA |
4000 VA |
4000 VA |
| AC Input Current Maximum |
60 amps AC |
60 amps AC |
60 amps AC |
60 amps AC |
| AC Input Voltage Range (MATE Adjustable) |
80 to 150 VAC |
80 to 150 VAC |
80 to 150 VAC |
80 to 150 VAC |
| AC Input Frequency Range |
58 to 62 Hz |
58 to 62 Hz |
58 to 62 Hz |
58 to 62 Hz |
| DC Input Range |
21.0 to 34.0 VDC |
42.0 to 68.0 VDC |
21.0 to 34.0 VDC |
42.0 to 68.0 VDC |
| Continuous Battery Charge Output |
55 amps DC |
35 amps DC |
85 amps DC |
45 amps DC |
| Warranty |
Standard 2 year / Optional 5 year |
Standard 2 year / Optional 5 year |
| Unit Weight |
56 lbs (25 kg) |
54 lbs (25 kg) |
| Shipping |
67 lbs (30 kg) |
62.2 lbs (28 kg) |
| Unit Dimensions (H x W x L) |
13 x 8.25 x 16.25" (33 x 21 x 41 cm) |
12 x 8.25 x 16.25" (30 x 21 x 41 cm) |
| Shipping |
21.75 x 13 x 22" (55 x 33 x 56 cm) |
21.75 x 13 x 22" (55 x 33 x 56 cm) |
Detailed Description
Grid Tie/Utility Interactive Capable
Able to sell solar, wind or hydro power back to the utility grid. Reduce your utility bill by spinning your meter backwards!
Provides Utility Back-Up Power
Keeps your lights on when the power goes out as well as other loads like wells, TV, fridge, computer, garage door opener, alarm, etc.
Works Automatically
Built-in transfer switch automatically disconnects the house loads from the utility grid and powers them from the inverter during an outage.
Safe and Approved
Listed to UL1741 standards as a non-islanding power inverter system for renewable energy applications.
Ultra Clean AC Power
Smooth, pure sine wave AC output waveform-not a coarse stepped sine wave or modified square wave.
Intelligent Battery Charger
Advanced charging algorithms provide fast recharging while increasing battery life up to 10 years.
Field Serviceable
Both FX and VFX inverter/chargers can be upgraded or serviced-even in the field.
Networked Communications
All OutBack products can be connected through a HUB to form a network with monitoring and control via a single MATE Display.
Capable Tech Support Help
You can call or email and ask questions of the engineers that designed your products. Tech support doesn't get any better than that.
