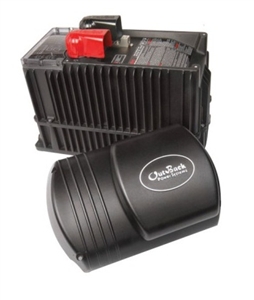

OutBack Sealed Off-Grid Inverter - 3000 Watts 48 Volts
Manufacturer Part Number: FX3048T
The OutBack FX series is a modular "building block” sine wave inverter/charger that can be used for both small and large power systems. Each OutBack FX inverter/charger is a complete power conversion system - DC to AC inverter, battery charger and AC transfer switch. Additional FX inverter/chargers can be connected at any time in either parallel (120 VAC), series (120/240 VAC), or three-phase (120/208 VAC) configurations. This allows a system to be tailored to meet the specific power conversion requirements of the application, both at the time of the installation and in the future.
The OutBack FX series is also available in export versions with 230 VAC, 50 hz output that can be connected in parallel (230 VAC) or in three phase (230/400 VAC) configurations.
Specifications
|
Sealed Models |
| FX2012T |
FX2524T |
FX3048T |
| Nominal DC Input Voltage |
12 VDC |
24 VDC |
48 VDC |
| Continuous Power Rating at 25° C |
2000 VA |
2500 VA |
3000 VA |
| AC Voltage/Frequency |
120 VAC 60 Hz |
| Continuous AC RMS Output at 25° C (Amps AC)
|
17.0 |
20.8 |
25.0 |
| Full Idle Power |
˜ 20 Watts |
˜ 20 Watts |
˜ 23 Watts |
| Search |
˜ 6 Watts |
| Typical Efficiency |
90% |
92% |
93% |
| Typical Total Harmonic Distortion |
2% |
| Maximum |
5% |
| Output Voltage Regulation |
+/- 2% |
| Peak Maximum Output Current (Amps AC) |
56 |
70 |
70 |
| RMS (Amps AC) |
40 |
50 |
50 |
| Surge AC Overload Capability |
4800 VA |
6000 VA |
6000 VA |
| 5 Second |
4000 VA |
4800 VA |
4800 VA |
| 30 Minutes |
2500 VA |
3200 VA |
3200 VA |
| AC Input Current Maximum (Amps AC) |
60 |
| AC Input Voltage Range (MATE Adjustable) |
80 - 150 VAC |
| AC Input Frequency Range |
54 to 66 Hz |
| DC Input Voltage Range |
10.5 - 17.5 VDC |
21.0 - 34.0 VDC |
42.0 - 68.0 VDC |
| Continuous Battery Charge Output |
80 amp DC |
55 amp DC |
35 amp DC |
| Warranty |
Standard 2 year / Optional 5 year |
| Unit Weight |
56 lbs (25 kg) |
| Shipping |
67 lbs (30 kg) |
| Unit Dimensions (H x W x L) |
13 x 8.25 x 16.25" (33 x 21 x 41 cm) |
| Shipping |
21.75 x 13 x 22" (55 x 33 x 56 cm) |
*Turbo units, with a "T" suffix, come with an external cooling fan for increased performance.
Detailed Description
The OutBack FX is designed to survive harsh environments anywhere in the world. Our unique sealed, gasketed die-cast aluminum chassis protects and keeps the power conversion components cool - without requiring outside air to be blown through the sensitive electronics. This reduces the major causes of inverter failure - corrosion, dust, insect and animal damage. The FX can be used in high ambient applications up to 60°C with reduced output ratings. A "Turbo" option is available with FX inverters. This consists of an external cooling fan and baffels to enhance operation in hot conditions. The new VFX Series with internal ventilation will function even better in hot conditions.
The OutBack FX series inverter/charger system is designed for both residential and commercial stand-alone or back-up power applications with battery energy storage. It is designed to operate as a coordinated system with the other OutBack products i.e. the PSDC, PSAC and PSR enclosures as well as the MX60 MPPT charge controllers and MATE system controller and display. If the MATE is going to be controlling several devices at once a HUB-4 or HUB-10 will be required. The Remote Temperature Sensor, or RTS should be used to enhance battery charging.
