Q Cells Q.Peak Duo BLK G6+ 340 > Q-Peak Duo G6+ 340 Watt Mono Solar Panel - All Black
Q Cells Q.Peak Duo BLK G6+ 340 > Q-Peak Duo G6+ 340 Watt Mono Solar Panel - All Black

Warranty: 25 Year product warranty & 25 Year linear performance warranty
Volts: 33.94 V

Stock Status:In Stock

Availability: This product is no longer available.
Product Code: Q-CELLS-Q.PEAK-DUO-BLK-G6-340


Description Datasheet

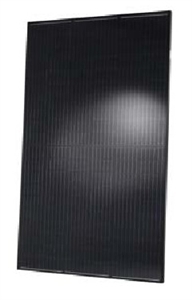

Q Cells > Q-Peak Duo G6+ 340 Watt Mono Solar Panel - All Black

Black Frame (32mm), Black Backsheet - Half-Cut Cell Solar Panel - 120 Cell

Model Q.PEAK DUO BLK-G6+ 340
Series Q.PEAK DUO BLK-G6+
Manufacturer Q-Cells

Mechanical

Type Monocrystalline
Dimensions 68.5" x 40.6" x 1.26"
Weight 43.9 lbs
Frame Black anodized aluminum
Connector Junction Box w/ Multi-Contact MC4

Electrical

Watts (STC) 340 W
Max Power Voltage (VMPP) 33.94 V
Max Power Current (IMPP) 10.02 A
Open Circuit Voltage (VOC) 40.66 V
Short Circuit Current (ISC) 10.52 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 25 Years Product
  • 25 Years linear performance

Detailed Information

The new Q Cells Q.PEAK DUO BLK-G6+ solar module from Q CELLS impresses with its outstanding visual appearance and particularly high performance on a small surface thanks to the innovative Q.ANTUM DUO Technology. Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions — both with low-intensity solar radiation as well as on hot, clear summer days.

  • Q.ANTUM TECHNOLOGY: LOW LEVELIZED COST OF ELECTRICITY
    Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5 %.

  • INNOVATIVE ALL-WEATHER TECHNOLOGY
    Optimal yields, whatever the weather with excellent low-light and temperature behavior.

  • ENDURING HIGH PERFORMANCE
    Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.

  • EXTREME WEATHER RATING
    High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC.

  • A RELIABLE INVESTMENT
    Inclusive 25-year product warranty and 25-year linear performance guarantee

  • STATE OF THE ART MODULE TECHNOLOGY
    Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology
