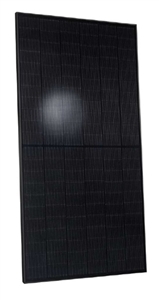

Qcells Q.Peak Duo BLK ML-G10+ 410 > 410 Watt Mono Solar Panel - All Black - Pallet Quantity - 32 Solar Panels
Qcells Q.Peak Duo BLK ML-G10+ 410 > 410 Watt Mono Solar Panel - All Black - Pallet Quantity - 32 Solar Panels

Alternative Views:
Our Price: $8,768.00
Volts: 37.64 V


Product Code: Q.PEAK-DUO-BLK-G10-410-PLLT
Qty:

Description Datasheet


Qcells > Q.Peak Duo BLK ML-G10+ 410 Watt Mono Solar Panel - All Black - Pallet Quantity - 32 Solar Panels

132 Half-cut Cell, 32mm Black Anodized Aluminum Frame, Black Backsheet

Model Q.Peak Duo BLK ML-G10+ 410
Series Q.Peak Duo BLK ML-G10+
Manufacturer Qcells
Pallet Quantity 32 Solar Panels

Mechanical

Type Monocrystalline
Dimensions 74" x 41.1" x 1.26"
Weight 48.5 lbs
Frame Anodized aluminum
Connector Junction Box w/ Multi-Contact MC4

Electrical

Watts (STC) 410 W
Max Power Voltage (VMPP) 37.64 V
Max Power Current (IMPP) 10.89 A
Open Circuit Voltage (VOC) 45.37 V
Short Circuit Current (ISC) 11.20 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 25 Years Product
  • 25 Years linear performance

Detailed Information

  • BREAKING THE 20 % EFFICIENCY BARRIER
    Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 20.6 %.
  • THE MOST THOROUGH TESTING PROGRAM IN THE INDUSTRY
    Qcells is the first solar module manufacturer to pass the most comprehensive quality program in the industry: The new “Quality Controlled PV” of the independent certification institute TÜV Rheinland.
  • INNOVATIVE ALL-WEATHER TECHNOLOGY
    Optimal yields, whatever the weather with excellent low-light and temperature behavior.
  • ENDURING HIGH PERFORMANCE
    Long-term yield security with Anti LeTID Technology, Anti PID Technology2 and Hot-Spot Protect
  • EXTREME WEATHER RATING
    High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).
  • A RELIABLE INVESTMENT
    Inclusive 25-year product warranty and 25-year linear performance warranty.
