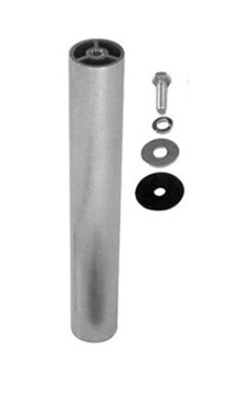

Quick Mount PV > 11.5" QBase Post-Style Mount - POST Only - Box of 20

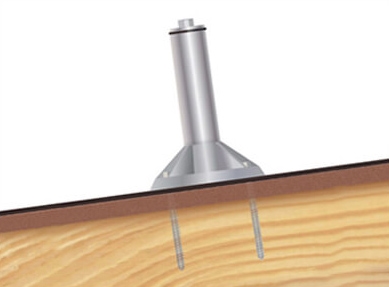

Quick Mount’s QBase Low Slope Mount takes the traditional base-and-post PV mount to its ultimate level. The cast-aluminum QBase reinforced foundation is the strongest you can buy for mechanically attaching commercial PV systems to TPO, PVC, EPDM, built-up asphalt, and virtually all other non-metal low slope. roofs.
Properly flashing penetrations in PVC, TPO and other membrane-type roofing requires the use of manufacturer-specific materials to ensure the flashing bonds chemically with the field membrane (ask the roofer of record or your roofing supplier).
For built up asphalt roofs, aluminum flashings are available from Quick Mount PV in 4" cones (sold separately).
|
Model
|
QM-QBP-11.5-M1
|
|
Series
|
QBase Low Slope Mount
|
|
Finish
|
Mill
|
|
Post
|
11.25 INCH
|
|
Quantity
|
20 |
|
Manufacturer
|
Quick Mount PV / IronRidge
|
- Patented waterproofing technology
- All exposed hardware is stainless steel
- Installs faster than any other flashed solar PV mounting
- Works with all standard racking systems
These mounts use Quick Mount PV’s patented QBlock waterproofing technology to seal the roof penetrations, and aluminum and stainless steel parts to secure the conduit for the life of the system.
