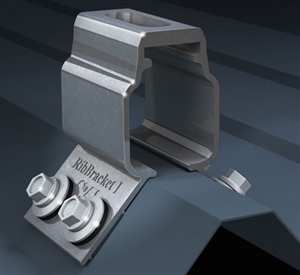

S-5! > Bracket Mount for trapezoidal roof shapes.
Manufacturer Part Number: RibBracket I
Fits popular Hawaiian profiles such as HPM Custom 4-Rib, HPM Custom 6-Rib, and other similarly dimen- sioned profiles.
The RibBracket I-V are designed to be used with our direct attach railless PV Kit method only. If you are using rails on a trapezoidal exposed fasted roof you will want to use S-5's SolarFoot or ProteaBracket.
S-5 RibBracket I are versatile, reliable, and smart solutions for attaching our PV Kit, Edge Grab and bottom mount rails to your exposed fastened trapezoidal metal roof.
Documentation
Detailed Description:
With RibBracket I-IV, there are no messy sealants to apply and no chance for leaks! RibBracket I-IV comes with a factory-applied EPDM rubber gasket seal already on the base, and the reservoir conceals the EPDM from UV exposure, preventing drying and cracks. RibBracket I-IV is the perfect match for our S-5-PV Kit, Edge Grab or bottom mount rails, without worrying about cold bridging! RibBracket I-IV is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.
Do not use with L-Feet and side mounted rails.
Installation is Easy
RibBracket I-IV is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align and apply. Secure through the pre-punched holes using the appropriate fasteners or Bulb-tite rivets for the supporting roof material.
RibBracket I-IV is the perfect match for our S-5-PV Kit, Edge Grab and bottom mount rails, without worrying about cold bridging! RibBracket I-IV is extremely economical and facilitates quick and easy installation.
Do not use with L-Feet and side mounted rails.
The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries. It can be used for almost any attachment needed. No messy sealants to apply. The factory-applied EPDM rubber gasket weather-proofs and makes installation easy!
