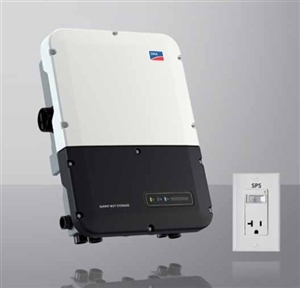

SMA Sunny Boy Storage > 5.0kW 208 / 240 Volt Single Phase Grid-Tie Battery Storage Inverter - Integrated DC Disconnect
|
All Hybrid Inverter PV Systems will need rapid shutdown. The IMO BG10P34-11 remote shutdown button is an outdoor initiation switch that can be used to trigger PV system rapid shutdown.
IMO RSD Button BG10P34-11 > Rapid Shutdown Button compatible with APsmart Rapid Shutdown System
IEEE 1547-2018 requires the local communications interface to remain available whenever the DER is operating. This indirectly creates a requirement for the IQ Gateway not to reboot during and following a low voltage ride through event. The IQ Gateway hardware was redesigned to meet this requirement so installers must only choose from the list of supported hardware and be running software versions 7.3.460 or later to be fully compliant.
|
|
NOTE: All SMA Sunny Boy Storage inverter models are being discontinued by manufacturer, replacement models expected Q3 of 2023.
|
Specifications
|
Model
|
SBS 5.0-US-10
|
|
Series
|
Sunny Boy Storage (SBS)
|
|
Manufacturer
|
SMA
|
Mechanical
|
Type
|
Central Grid-Tie Battery Storage Inverter
|
|
Operating Temperature Range
|
-25° C to +60° C
|
|
Enclosure
|
NEMA 3R
|
|
Cooling
|
Convection
|
|
Dimensions (W x H x D)
|
21.1" x 28.5" x 7.8"
|
|
Weight
|
57 lbs
|
|
Shipping Method
|
Freight
|
Battery DC Input
|
Max. DC voltage
|
600 V
|
|
DC voltage range/ DC rated voltage
|
100 V - 550 V / 360 V
|
|
Min. DC voltage / start DC voltage
|
100 V / 100 V
|
|
Max. DC current power input / # of inputs
|
10 A / 3
|
|
Max. short-circuit current per input
|
40 A
|
|
Compatible battery type
|
Li-Ion
|
Secure Power Supply
|
Maximum output power
|
2000 W
|
|
Maximum output current
|
16 A
|
|
Nominal AC voltage
|
120 V
|
Output (AC Connection)
|
AC nominal power
|
5000 W
|
|
Backup overload @ 25° C for 1 minute
|
6250 W
|
|
Nominal AC voltage / adjustable
|
240 V / 211 - 264 V
|
|
Rated power frequency / rated grid voltage
|
60 Hz / 240 V
|
|
AC grid frequency / range
|
60 Hz / 50 Hz
|
|
Adjustable displacement power factor
|
0.8 overexcited - 0.8 underexcited
|
|
Output phases / line connections
|
1 / 2
|
|
Harmonics
|
< 4 %
|
Features
The Sunny Boy Storage battery inverter has been precisely engineered to serve as the intelligent interface between PV, the electrical grid and industry-leading high-voltage batteries. Its AC coupled architecture enables installation at any point in time, providing greater flexibility and giving installers the opportunity to generate new business with existing customers.
Along with its ability to address the large retrofit market of existing PV systems, it also delivers the most cost-effective, versatile and innovative residential storage solution available. Additionally, up to 2000 W of convenience power can now be achieved in the event of a grid outage during both day and night thanks to its Secure Power Supply feature. Full backup functionality will also be available with a backup unit from 3rd party vendors.
Versatile
- AC coupled for new PV systems or retrofitting existing systems
- Compatible with many leading high-voltage batteries
Simple & Flexible
- Quick and easy installation
- Multiple configuration options with the ability to expand
Innovative
- High level of system integration provides unmatched monitoring and control
- Three separate DC inputs allow for maximum power and energy capacity
Cost-Effective
- Includes energy management functions for many different applications
|
|
|
 |
|
 |
|
|
|
