SMA Sunny Boy > 5.0 kW 208 / 240 Volt Single Phase Grid-Tie Inverter
NOTE:
SMA America has removed the WiFi feature of some products due to supply chain issues. A hard-wired network connection will still work, or using an optional cellular network connection. SMA believes the first products with WiFi reinstated will be delivered when supply chain issues are resolved, which is to be determined.

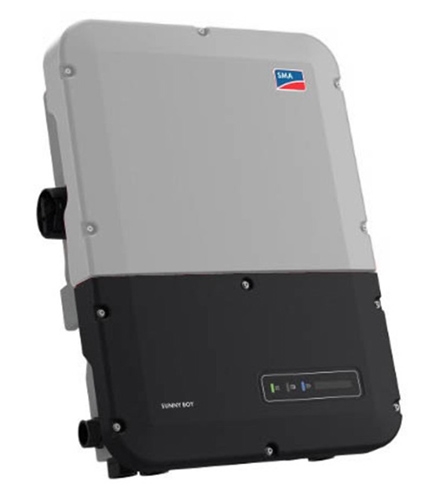

Sunny Boy 5.0-US with integrated DC Disconnect, LCD, Grey Lid, AFCI, 208 & 240VAC; SunSpec Compliant.
The SMA "-41" Series Sunny Boy inverter, featuring SunSpec signal transmitter chip, is one of the most versatile residential inverters available. Combine this series with the SunSpec certified
JMS-F Rapid Shutdown MLPE (SMA JMS-F) in order to build cost effective NEC 2017 PV RSS compliant string systems. Or leave all the rooftop electronics behind and design the system to take full advantage of the Secure Power Supply (SPS feature not Compatible with Sunspec based PV RSS). 600V max system DCV, compatible with both 240V and 208V sites, and backed by SMA's Power+ customer service package.
|
NOTE: All SMA Sunny Boy -41 Grid-Tie inverter models are being discontinued by manufacturer, replacement models expected Q3 of 2023
|
Specifications
|
Model
|
SB-5.0-1SP-US-41
|
|
Series
|
Sunny Boy
|
|
Manufacturer
|
SMA
|
Mechanical
|
Type
|
Central Grid-Tie
|
|
Operating Temperature Range
|
-25° C to +60° C
|
|
Enclosure
|
NEMA 3R
|
|
Cooling
|
OptiCool
|
|
Dimensions (W x H x D)
|
21.1" x 28.5" x 7.8"
|
|
Weight
|
57 lbs
|
|
Shipping Method
|
Freight
|
Input (DC)
|
Max. usable DC power
|
8000 Wp
|
|
Max Voltage
|
600 V
|
|
Rated MPP voltage range
|
220 V - 480 V
|
|
MPPT operating voltage range
|
100 V - 550 V
|
|
Min. DC voltage / start voltage
|
100 V / 125 V
|
|
Max. operating input current per MPPT
|
10 A
|
|
Max. short circuit current per MPPT
|
18 A
|
|
Number of MPPT tracker / string per MPPT tracker
|
3 / 1
|
Output (AC)
|
AC nominal power
|
5000 W / 208 V
5000 W / 240 V
|
|
Max. AC apparent power
|
5000 W / 208 V
5000 W / 240 V
|
|
Nominal voltage / adjustable
|
208 V
240 V
|
|
AC voltage range
|
183 – 229 V / 208 V
211 - 264 V / 240 V
|
|
AC grid frequency
|
60 Hz / 50 Hz
|
|
Max. output current
|
24.0 A / 208 V
24.0 A / 240 V
|
|
Power factor (cos ϕ)
|
1
|
|
Output phases / line connections
|
1 / 2
|
|
Harmonics
|
< 4 %
|
Features
The SMA Sunny Boy SB-41 series of transformerless single-phase residential inverters can be used for both residential single phase 120/240 VAC applications, as well as for three-phase 208 and three-phase 240 volt applications, when used in groups of three inverters to balance the phases. These inverters utilize three separate MPPT channels, allowing more stringing options, and up to three array facings. The integrated DC disconnect simplifies and speeds installation. Solar array monitoring through SMA’s Sunny Portal has also have been simplified, as these inverters ship with factory installed WiFi capable data loggers that enable fast and easy connection to the Sunny Portal platform, and can be field configured via a laptop, smart phone, or other WiFi enabled device.
SMA’s unique Secure Power Supply feature has been improved, and now can supply up to 2,000 W (15 A / 120 VAC) of power to a protected outlet during a grid outage, which provides a single ‘protected’outlet useful for recharging portable devices or a small UPS directly from the PV array.
Power+ MLPE devices with the ROOFCOMKIT-P2 can be utilized for states that have adopted NEC2017 code to provide module level optimization, shade mitigation, and/or rapid shutdown functionality, based on customer needs and price point. These inverters are now Sunspec compliant, and can also use the new TS4-R-F MLPE devices to comply with NEC2017 module level RSD, without needed the ROOFCOMKIT. In states still enforcing NEC 2014 code, the SMA Rapid Shutdown Boxes and Controller can still be used.
These SMA inverters are listed to UL 1741, UL 1998, UL 1699B, and are compliant with IEEE-1547, and FCC Part 15 (Class A & B), as well as both ground and arc fault detection per NEC 2011. They are covered by a standard 10-year warranty, with 5-year and 10-year extensions available.
Product Highlights
- CEC Rated Efficiencies of up to 97.0%
- 2,000 W Secure Power Supply (requires installation of a dedicated outlet)
- Operating temperatures of -40 °F to +140 °F
- Up to three MPPT input circuits – 10 A max usable current (18 A max Isc) per MPPT input
- Integrated AFCI for arc-fault protection
- Available in sizes from 3.0 kW to 7.7 kW AC Output
- Field selectable 240 VAC Single-Phase or 208/240 VAC three-phase output
- NEC 2014 / NEC 2017 Rapid Shutdown Compliant
- SMA Rapid Shutdown Box and Controller (NEC 2014)
- SMA TS4-R-S/TS4-R-O Power+ Optimizers with ROOFCOMKIT-P2 (NEC 2017)
- SMA TS4-R-F Power+ MLPE, with SunSpec Communication (NEC 2017)
- 10-year standard warranty, with upgrade option to 20 years
- Listed to UL 1741 and UL1699B for U.S.A. and Canada
- Compliant with: IEEE 1547, IEEE 929, FCC Part 15 A& B , CSA C22.2 107.1-1
- Compliant to UL 1741-SA (CA Rule 21) requirements
