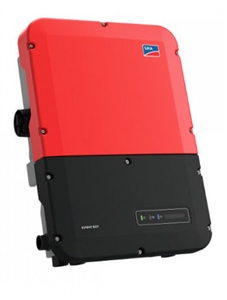

SMA Sunny Boy 7.0 kW 208 / 240 Volt Single Phase Grid-Tie Inverter
Specifications
|
Model
|
SB7.0-1SP-US-40
|
|
Series
|
Sunny Boy
|
|
Manufacturer
|
SMA
|
Mechanical
|
Type
|
Central Grid-Tie
|
|
Operating Temperature Range
|
-25° C to +60° C
|
|
Enclosure
|
NEMA 3R
|
|
Cooling
|
OptiCool
|
|
Dimensions (W x H x D)
|
21.1" x 28.5" x 7.8"
|
|
Weight
|
57 lbs
|
|
Shipping Method
|
Freight |
Input (DC)
|
Max. usable DC power
|
6900 W / 208 V
7200 W / 240 V
|
|
Max Voltage
|
600 V
|
|
Rated MPP voltage range
|
245 V - 480 V
|
|
MPPT operating voltage range
|
100 V - 550 V
|
|
Min. DC voltage / start voltage
|
100 V / 125 V
|
|
Max. operating input current per MPPT
|
10 A
|
|
Max. short circuit current per MPPT
|
18 A
|
|
umber of MPPT tracker / string per MPPT tracker
|
3 / 1
|
Output (AC)
|
AC nominal power
|
6660 W / 208 V
7000 W / 240 V
|
|
Max. AC apparent power
|
6660W / 208 V
7000 W / 240 V
|
|
Nominal voltage / adjustable
|
208 V
240 V
|
|
AC voltage range
|
183 – 229 V / 208 V
211 - 264 V / 240 V
|
|
AC grid frequency
|
60 Hz / 50 Hz
|
|
Max. output current
|
32.0 A / 208 V
29.2 A / 240 V
|
|
Power factor (cos ϕ)
|
1
|
|
Output phases / line connections
|
1 / 2
|
|
Harmonics
|
< 4 %
|
Features
The Sunny Boy-US series features a wealth of improvements and joins SMA’s lineup of field-proven solar technology backed by the a fantastic service team. The world’s first Secure Power Supply now delivers up to 2,000 W of opportunity power when the grid goes down and the sun is shining. Installation has never been easier thanks to SMA’s Installation Assistant, direct access via smartphone, and integrated DC disconnect.
The Sunny Boy’s multiple independent input channels, each with SMA’s OptiTrac™ Global Peak, mean hundreds of stringing configurations for flexible system design while solving the challenges of complex roofs and shading.
