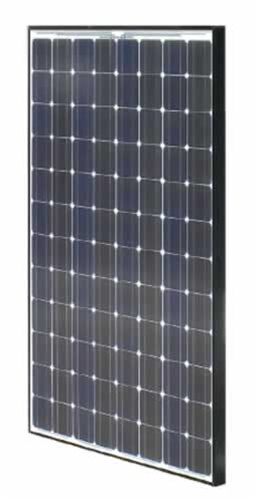

Sanyo HIP-180BA19, HIT Power Solar Panel, 180 Watt
Detailed Description:
About Sanyo
Capable of generating electricity from the
sun which is an unlimited, clean source of energy, photovoltaic power
generation has recently attracted a great deal of attention. As a
pioneer in photovoltaic power generating systems, Sanyo has
consistently taken the lead in research and development. Sanyois
dedicated to contributing towards more comfortable living for all and
to promoting co-existence with the global environment.
More than 30 years of experience in solar technology has earned Sanyo a reputation for reliability among customers.
HIT Photovoltaic Module
HIT Power 180
Module Efficiency: 16.4%
Cell Efficiency: 18.8%
Power Output: 190 Watts
High Efficiency
HIT Power solar panels are leaders in sunlight conversion efficiency.
Obtain maximum power within a fixed amount of space. Save money using
fewer system attachments an racking materials, and reduce costs by
spending less time installation power watt.
Power Guarantee
Sanyo's power rating for HIT Power panels guarantee customers receive
100% of the nameplate rated power (or more) at the time of purchase,
enabling owners to generate more kWh per rated watt, quicken investment
returns, and help realize complete customer satisfaction.
Temperature Performance
As temperature rise, HIT Power solar panels produce 10% or more
electricity (kWh) than conventional crystalline silicon solar panels at
the same temperature.
Proprietary Technology
HIT solar cells are hybrids of single crystalline silicon surrounded by
ultra-thin amorphous silicon layers, and are available solely from
Sanyo. HIT Power modules are ideal fro grid-connected solar systems,
areas with performance based incentives, and renewable energy credits.
Structural Strength
HIT Power panels have a double-wall black anodized aluminum frame for
extra strength and are tested to 60 PSF. The panels come pre-equipped
with a touch-safe junction box, USE-2 outdoor rated cables, MC4TM locking connectors, and are UL 1703 safety rated for wind, hail, and fire.
Valuable Features
HIT Power solar panels operated silently, have no moving parts and are
among the lightest per watt in the industry. Unique eco-packaging
minimizes cardboard waste at the job site., The packing density of the
panels reduces transportation, fuel, and storage costs per installed
watt.
Quality Products
Sanyo silicon wafers located inside HIT solar panels are made in
California, USA, and the panels are assembled in an ISO 9001 (quality),
14001 (environment), and 18001 (safety) certified factory. The panels
have a Limited 10-Year Power Output and 5-Year Product Workmanship
Warranty.
| Electrical Specifications |
|---|
| Model |
|
|---|
| Rated Power (Pmax)1 | 180 W |
|---|
| Maximum Power Voltage (Vpm) | 54.0 V |
|---|
| Maximum Power Current (Ipm) | 3.33 A |
|---|
| Open Circuit Voltage (Voc) | 66.4 V |
|---|
| Short Circuit Current (Isc) | 3.65 A |
|---|
| Temperature Coefficient (Pmax) | -0.33% / °C |
|---|
| Temperature Coefficient (Voc) | -0.173 V / °C |
|---|
| Temperature Coefficient (Isc) | 1.10 mA / °C |
|---|
| Cell Efficiency | 17.8% |
|---|
| Module Efficiency | 15.5% |
|---|
| Watts per Ft.2 | 14.4 W |
|---|
| Maximum System Voltage | 600 V |
|---|
| Series Fuse Rating | 15 A |
|---|
Mechanical Specifications:
Internal Bypass Diodes 4 Bypass Diodes
Module Area 12.49 Ft.2 (1.16m2)
Weight 33.07 Lbs. (15kg)
Dimensions LxWxH 51.9x34.6x1.8 in. (1319x880x46mm)
Cable Length -Male/+Female 30.7/24.8 in. (780/630mm)
Cable Size / Connector Type No.12 AWG / MC4™ Locking Connectors
Static Wind / Snow Load 60PSF (2880Pa) / 39PSF (1867Pa)
Pallet Dimensions LxWxH 53x35x77 in. (1346x897x1952mm)
Quantity per Pallet / Pallet Weight 34 pcs. / 1102 Lbs. (500kg)
|
|
|
 |
|
 |
|
