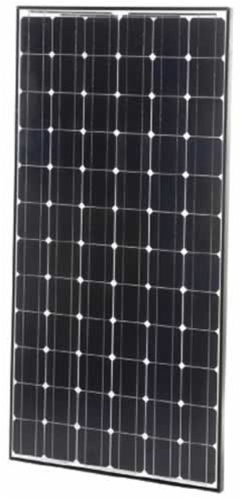

Sanyo HIP-210NKHA5, HIT Power Solar Panel, 210 Watt, 30 Volt
*
The Sanyo HIP-210NKHA6 Sanyo and HIP-210NKHA5 have identical electrical
and physical characteristics. The model number upgrade is due to a
manufacturer production change.
Detailed Description:
Think GAIA
For Life and the Earth
HIT Photovoltaic Module
HIT Power 210N
Photovoltaic Module
Module Efficiency: 16.7%
Cell Efficiency: 18.9%
Power Output: 210 Watts
High Efficiency
HIT Power solar panels are leaders in sunlight conversion efficiency.
Obtain maximum power within a fixed amount of space. Save money using
fewer system attachments and racking materials, and reduce costs by
spending less time installation power watt. HIT Power models are ideal
for grid-connected solar systems, area with performance based
incentives, and renewable energy credits.
Power Guarantee
Sanyo's power rating for HIT Power panels guarantee customers receive
100% of the nameplate rated power (or more) at the time of purchase,
enabling owners to generate more kWh per rated watt, quicken investment
returns, and help realize complete customer satisfaction.
Temperature Performance
As temperature rise, HIT Power solar panels produce 10% or more
electricity (kWh) than conventional crystalline silicon solar panels at
the same temperature.
Valuable Features
The packing density of the panels reduces transportation, fuel, and storage costs per installed watt.
Quality Products Made in USA
Sanyo silicon wafers located inside HIT solar panels are made in
California and Oregon (for October 2009), and the panels are assembled
in an ISO 9001 (quality), 14001 (environment), and 18001 (safety)
certified factory. Unique eco-packing minimizes cardboard waste at the
job site. The panels have a Limited 20-Year Power Output and 5-Year
Product Workmanship Warranty.
SANYO'S Proprietary Technology
HIT solar cells are hybrids of mono crystalline silicon surrounded by
ultra-thin amorphous silicon layers, and are available solely from
Sanyo.
HIT Power 210N
Photovoltaic Module
Electrical Specifications
Model: HIT Power 210N or HIP-210NKHA5
Rated Power (Pmax)1: 210 Watts
Maximum Power Voltage (Vpm): 41.3 Volts
Maximum Power Current (Ipm): 5.09 Amps
Open Circuit Voltage (Voc): 50.9 Volts
Short Circuit Current (Isc): 5.57 Amps
Temperature Coefficient (Pmax): -0.336%/°C
Temperature Coefficient (Voc): -0.142V/°C
Temperature Coefficient (Isc): -1.95 mA/°C
NOCT: 114.8°F (46°C)
CEC PTC Rating: 194.8 W
Cell Efficiency: 18.9%
Module Efficiency: 16.7%
Watts per FT2: 15.48 Watts
Maximum System Voltage: 600 Volts
Series Fuse Rating: 15 Amps
Warranted Tolerance (+/-): -0% / 10%
Mechanical Specifications
Internal Bypass Diodes: 4 Bypass Diodes
Module Area: 13.56 FT2 (1.216 m2)
Weight: 35.3 lbs. (16 k g)
Dimensions (LxWxH): 62.3" x 31.4" x X 1.8" (1580 X 798 x 46 mm)
Cable Length -Male/+Female: 40.55"/34.6" (1030 / 880 mm)
Cable Size / Connector Type: No. 12 AWG / MC4TM Locking Connectors
Static Wind / Snow Load: 60 PSF (2880 Pa) / 39 PSF (1867 Pa)
Pallet Dimension LxWxH: 63.2" x 32" x 72.8" (1607 x 815 x 1850 mm)
Quantity per Pallet: 34 pieces
Pallet Weight: 1234.5 lbs (560 kg)
Quantity 53' Container: 952 pieces
Operating Conditions & Safety Ratings
Ambient Operating Temperature: -4°F to 115°F (-20°C to 46°C)2
Hail Safety Impact Velocity: 1" hailstone (25 mm) at 52 mpg (23 m/s)
Fire Safety Classification: Class C
Safety & Rating Certifications: UL 1703, cUL, CEC
Limited Warranty: 5 Year Workmanship, 20 Year Power Output
1STC: Cell Temperature 25°C, AM 1.5, 1000W/m2
2Monthly average low and high of the installation site.
Note: Specifications and information above may change without notice
|
|
|
 |
|
 |
|
