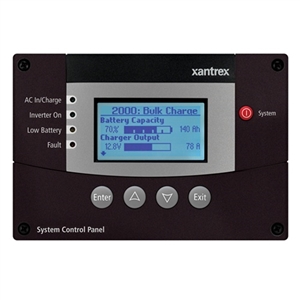

Xantrex Xanbus System Control Panel
Manufacturer Part Number:
809-0922
Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers – 12V & 24V (part# 815-2012, 815-3012, 815-2024 and 815-3024).
The Xanbus System Control Panel (SCP) is compatible with Schneider SW and XW inverters. It features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.
The Xantrex SCP is functionally identical to the discontinued Schneider Electric SCP. It is designed for local monitoring and control only. To commission the XW Pro system, you will need to use InsightHome or InsightFacility. Please note that some features and functions are only available through InsightLocal.
Note: This product needs a RJ45 communication cable, which is not included with the display. Please purchase a standard RJ45 cable, (Victron RJ45 UTP cable).
Features
- Graphical 128x64 pixel LCD display
- Large, tactile keys
- Meets UL458 regulatory standards
- Control and display of multiple networked devices
- Xanbus Enabled
Specifications
|
Electrical Specifications
|
|
Display
|
dot matrix 128 x 64 LCD with white LED backlight
|
|
Mechanical Specifications
|
|
Dimensions (H x W x D)
|
6" x 4" x 1-9/16" (152 x 103 x 40 mm)
|
|
Weight
|
0.46 lb (207 kg)
|
|
Part#
|
809-0921
|
|
Regulatory Compliance
|
|
Safety
|
CSA certified to CSA 107.1-01 and UL 458 including Marine Supplement
|
|
Environmental Specifications
|
|
Operating Temperature
|
-4 to 122°F (-20 to 50°C)
|
|
Storage Temperature
|
-40 to 185°F (-40 to 85°C)
|
|
General Specifications
|
|
Part Number
|
# 809-0910 for Freedom SW 2000 (# 815-2000) and Freedom SW 3000 (# 815-3000)
# 809-0921 for Freedom SW 2012 (# 815-2012) and Freedom SW 3012 (# 815-3012)
|
Detailed Description
The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.
The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP’s software upgradeable to take advantage of new features and system enhancements.
