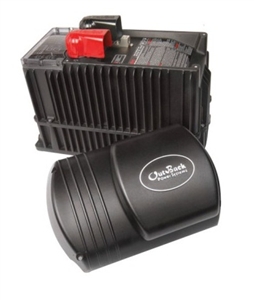

Outback Mobile Inverter, Sealed
2500 Watt 32 Volt
120 VAC/60 Hz
Manufacturer Part Number: FX2532MT
80 Amp Charger Mobile Sealed Turbo M-Series Sealed inverter for Marine-Mobile Applications.The Outback M-Series inverter/charger is an all-in-one mobile power solution. It incorporates a true sine wave inverter, intelligent battery charger and an AC transfer switch which includes a 30 amp pass through and automatic neutral/ground switching. All M-series inverter/chargers produce virtually distortion free AC power for all your mobile electrical needs.
Features
- Powder-coated all aluminum die-cast chassis
- Internal electronic components are cooled by heat transfer
- Gaskets on all openings to provide water resistance
- Sealed design protects internal electronics from salt, dirt or contaminated air, bugs, critters, mold, etc.
- Conformal coated circuit boards to resist corrosion
- Designed to allow easy field servicing and repair
Specifications
|
Sealed Models(FX) |
| 2012MT |
2524MT |
2532MT |
| Nominal DC Input Voltage |
12 VDC |
24 VDC |
32 VDC |
| Continuous Power Rating at 25° C |
2000 VA |
2500 VA |
2500 VA |
| AC Voltage/Frequency |
120 VAC 60 Hz |
| Continuous AC RMS Output at 25° C |
17.0 amps AC |
20.8 amps AC |
20.8 amps AC |
| Full Idle Power |
˜ 20 Watts |
˜ 20 Watts |
˜ 21 Watts |
| Search |
˜ 6 Watts |
| Typical Efficiency |
90% |
92% |
92% |
| Typical Total Harmonic Distortion |
2% |
| Maximum |
5% |
| Output Voltage Regulation |
+/- 2% |
| Peak Maximum Output Current |
56 amps AC |
70 amps AC |
56 amps AC |
| RMS |
40 amps AC |
50 amps AC |
40 amps AC |
| Surge AC Overload Capability |
4800 VA |
6000 VA |
4800 VA |
| 5 Second |
4000 VA |
4800 VA |
4000 VA |
| 30 Minutes |
2500 VA |
3200 VA |
2500 VA |
| AC Input Current Maximum |
30 amps AC |
| AC Input Voltage Range (MATE Adjustable) |
80 to 150 VAC |
| AC Input Frequency Range |
54.0 to 66.0 Hz |
| DC Input Range |
10.5 to 17.0 VDC |
21.0 to 34.0 VDC |
28.0 to 45.3 VDC |
| Continuous Battery Charge Output |
80 amps DC |
55 amps DC |
35 amps DC |
| Warranty |
Standard 2 year / Optional 5 year |
| Unit Weight |
56 lbs (25 kg) |
| Shipping |
67 lbs (30 kg) |
| Shipping |
67 lbs (30 kg) |
| Unit Dimensions (H x W x L) |
13 x 8.25 x 16.25" (33 x 21 x 41 cm) |
| Shipping |
21.75 x 13 x 22" (55 x 33 x 56 cm) |
Detailed Description:
Industry leading surge power starts multiple heavy loads simultaneously without the need to run your generator. Innovative power factor corrected battery charging uses multiple stages to charge your batteries quickly so your generator runs less. Ultra fast AC transfer switch with battery charger back off circuitry allows you to seamlessly take full advantage of your shore cord.
Outback's modular design makes expanding your power system as easy as adding an additional inverter/charger. Integrated network communications makes system setup and monitoring easy through a single MATE2M controller. Very quiet operation allows mounting in noise sensitive areas, even under a bunk. Repairs in field are easy thanks to a simple three circuit board design.The Outback M-Series inverter is the superior choice when you need a reliable, powerful and modular true sine wave inverter/charger.The sealed OutBack M-Series inverter/charger is the most rugged design in the world. Conformal coated circuit boards, powder coated die-cast aluminum chassis with gaskets and o-ring seals keep out water and resist corrosion. Simply put, the sealed M-series is designed to work where other inverter/chargers were never intended to go.The turbo model has a modified DC Cover with a ventilation fan built in for better performance.
Welcome to the OutBack Power Systems FX Series Inverter/Charger System
The FX Series Inverter/Charger offers a complete power conversion system—DC to AC, battery charging, and an AC transfer switch—and can be used as a stand-alone or back-up application. It is designed for indoor or enclosed locations.
OutBack Power Systems does everything possible to assure the components you purchase will function properly and safely when installed as instructed according to local and national electrical codes (NEC). Please read all of the following instructions and the instructions that come with any other OutBack components that make up your power system.
